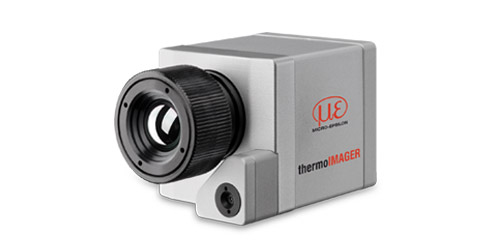

thermoIMAGER TIM 200
The thermoIMAGER TIM 200 dari Micro-Epsilon beroperasi dengan menggunakan teknologi bi-spektral baru yang menggabungkan dua gambar menjadi satu. Kamera inframerah USB kompak dalam versi TIM 200 dilengkapi dengan kamera visual tambahan yang merekam gambar IR dan selain gambar real time. Kamera memproses informasi gambar dari rentang spektral yang berbeda pada waktu yang bersamaan.
Feature
- Power supply and operation via USB
- Extremely lightweight, robust and compact design
- Analog input and output, trigger interface
- Optional: Cooling jacket for ambient temperatures up to 240°C
Spesification
- Measuring ranges: -20 to 100°C / 0 to 250°C / 150 to 900°C/ optionally up to 1500°C
- Optical resolution 160x120 IR / 640x480 VIS
- Spectral range 7.5 to 13µm
- Excellent thermal sensitivity of 0.08K (NETD)
- Exchangeable lenses with 6°FOV, 23°FOV, 48°FOV or 72° FOV
- Real-time thermography with 128Hz/32Hz frame rate
- Power supply and operation via USB
- Extremely lightweight, robust and compact design
- Analog input and output, trigger interface
- Optional: Cooling jacket for ambient temperatures up to 240°C
Inquiry
Video
Tidak ada video untuk produk ini
