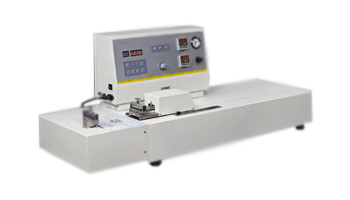

HTT- L1 Hot Tack Tester
Feature
- Micro-computer control, digital display, PVC operation board;
- 4 testing functions of hot tack, hot seal, peeling and tensile resistance;
- Digital P.I.D temperature control system;
- 4 force testing range;
- 6 testing speeds;
- Two start modes of manual and foot pedal;
- Automatic zero, error alert, overload protection and stroke protection.
- RS232 port;
- Network transmission interface for LAN data management and Internet data transmission.
Spesification
Seal Temperature | Room temperature~250? |
Temp. Control Accuracy | ±0.2? |
Dwell Pressure | 0.05MPa~0.7MPa |
Dwell Time | 0.1s~999.9s |
Delay Time | 0.1s~999.9s |
Load Cell Range | 0-200N (optional: 30N 50N 100N) |
Accuracy | ±1% of reading force |
Resolution | 0.01 N |
Test Speed | 100 150 200 300 500 and |
Hot Tack | (mm/min) |
Heat Type | single heating or double heating (also made to order) |
Specimen Width | 15mm , 25.4 mm. Or 25 mm(Optional, also made to order) |
Stroke | 500 mm |
Gas Source Pressure | 0.05MPa ~ 0.7MPa (Users provide gas sources themselves) |
Gas Source Inlet | ?6mm polyurethane pipe |
Power | AC 220V 50Hz |
Dimensions | 1170mm(L) ×360mm(B) ×460mm(H) |
Net weight | 45kg |
