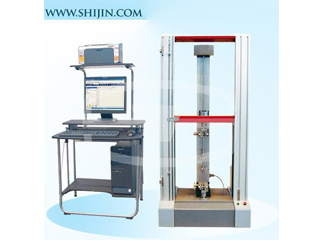

WDW-5E microcomputer control electronic universal testing machine
?product description?
This product is widely used in the mechanical properties of metal, non-metallic materials such as tension, compression, bending and shearing. With a wide range of attachments, it can also be used for mechanical properties testing of profiles and components. In the field of testing of materials such as ropes, belts, wires, rubber, and plastics, which have large deformation and high test speed, they also have a very broad application prospect. The company has established a mechanics laboratory with famous universities such as Tsinghua University, Beijing University of Aeronautics and Astronautics, Shanghai University, Huazhong University of Science and Technology, Zhejiang University, and Luoyang Institute of Technology, providing a reliable test method for teaching and research in universities.
?According to the standard?
It meets the requirements of national standard GB/T228-2002 "Metal material tensile test method at room temperature", GB/T7314-2005 "Metal compression test method", and meets the data processing of GB, ISO, ASTM, DIN and other standards. Can meet the requirements of users and the standards provided.
[with standard configuration]
A set of wedge-shaped tensile attachments, compression attachments, and bending attachments.
[Main application areas]
Plastics, rubber, quality supervision, teaching and research, aerospace, steel and metallurgy, automobiles, construction materials, etc.
Spesification
Serial number |
Technical indicators |
WDW-5E |
|
1 |
Test machine level |
Level 1 |
Level 0.5 |
2 |
Maximum test force |
5kN |
|
3 |
Test force measurement range |
Maximum test force ( 0.4% to 100% ) |
|
4 |
Test forcemeasurement accuracy |
± 1% better than the indicated value |
Better than ± 0.5% of the indication |
5 |
Test force resolvingpower |
±200000 yards |
|
6 |
Deformation extensometer |
Gauge 50mm , deformation maximum 10mm |
|
7 |
Deformation measurement range |
0.2%-100% of full scale |
|
8 |
Deformation measurement accuracy |
Better than ±1 % of the indication |
Better than ±0.5 % of the indication |
9 |
Displacement measurement accuracy |
Better than ±1 % of the indication |
Better than ±0.5 % of the indication |
10 |
Displacement resolution |
0.001mm |
|
11 |
Displacement speed |
0.005mm/min ~ 500mm/min stepless speed regulation |
|
12 |
Stretching stroke |
700mm |
|
13 |
Compression stroke |
700mm |
|
14 |
Test width |
400mm |
|
15 |
Working environment and voltage |
Room temperature 10 ~ 35 ° C , humidity 20% ~80% ~220V ±10 % 50Hz 400W ; |
|
16 |
Mainframe dimensions (width × depth × height) (mm) |
610 × 480 × 1274 |
|
17 |
Host weight |
About 100kg |
|
18 |
Force control rate adjustment range |
0.005--5% Fs/s |
