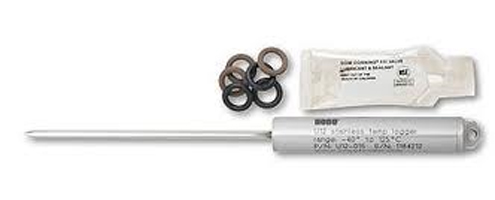

HOBO U12 5-Inch Probe Temperature - U12-015-02



The HOBO U12 Stainless 5-inch Probe Temperature Data Logger is ideal for monitoring internal temperature of foods or any application where fast response is critical.

Feature

  • Food-grade 316L stainless Temperature data loggers
  • High-accuracy, extended temperature range
  • Suitable for high pressure applications to 2200psi
  • Fast readout via direct USB interface
Environment:
  • The U12-015-02 Data Logger is for use in Indoor environments
Measurements:
  • The U12-015-02 Data Logger supports the following measurements : Temperature

Spesification

  • Measurement range: -40° to 125°C (-40° to 257°F)
  • Accuracy Resolution Plot Accuracy: +/- 0.25°C from 0° to 50°C (0.45°F from 32° to 122°F), see Plot A
  • Resolution: 0.025°C at 25°C (0.045°F at 77°F), see Plot A
  • Drift: 0.05°C/year + 0.1°C/1000 hrs above 100°C (0.09°F/year + 0.2°F/1000 hrs above 212°F)
  • Response time in 1 m/s (2.2 mph) airflow:
    U12-015: < 10 minutes, typical to 90%
    U12-015-02: 2.25 minutes, typical to 90%
  • Response time in water:
    U12-015: < 3.5 minutes, typical to 90%
    U12-015-02: 20 seconds, typical to 90%
  • Time accuracy: ± 2 minute per month at 25°C (77°F), see Plot BTime Base Error Plot
  • Operating environment: Air, water, steam, 0 to 100% RH
  • Operating temperature:
    Logging: -40° to 125°C (-40° to 257°F)
    Launch/readout: 0° to 50°C (32° to 122°F), per USB specification
  • Battery: life 3 year typical use, factory replaceable
  • Memory: 64K bytes (43,000 12-bit measurements)
  • Construction: 316L stainless steel with O-ring seal (food grade)
  • Weight:
    U12-015: 72 g (2.5 oz)
    U12-015-02: 82 g (2.9 oz)
  • Logger dimensions: 17.5 x 101.6 mm (0.69 x 4.00 inches)
  • Probe dimensions (U12-015-02 only): 4 x 124 mm (0.16 x 4.90 inches)
  • Pressure/depth rating: 2200 psi (1500 m/4900 ft) maximum
  • Vibration rating: Navy spec: NAVMAT P-9492 (non-probe model only)
  • NIST certificate: Available for additional charge; temperature range -30° to 120°C (-22° to 248°F)
